Welcome to the Deity Connect Deluxe Kit, a complete 2.4GHz wireless system that lets you transmit, receive, and record audio from a single set of gear. The kit pairs two BP-TRX transceivers with one DUO-RX dual-channel receiver, so you can run a two-person interview, feed a camera, and capture an isolated backup recording all at once. This guide covers what comes in the box and how the kit is meant to be used.
What the Deity Connect Deluxe Kit Does
The Deity Connect Deluxe Kit is built around the BP-TRX, a pocket-sized unit that works as a transmitter, a receiver, or a stand-alone recorder depending on the mode you select. Each BP-TRX also records internally to a microSD card in 24-bit/48kHz uncompressed WAV, and every unit carries a built-in timecode generator. The two BP-TRX units send audio to the DUO-RX, a dual-channel receiver that outputs to your camera or recorder over XLR or 3.5mm TRS.
- Transmit: Clip a BP-TRX and lavalier to your talent and send audio to the DUO-RX over a 2.4GHz link with a range up to 100m.
- Receive: The DUO-RX takes in up to two BP-TRX transmitters and feeds your camera or mixer on two channels.
- Record: Each BP-TRX captures a clean internal WAV backup to microSD with pre-jammed timecode stamped into the file header.
What's in the Box
The Deity Connect Deluxe Kit includes the following items:

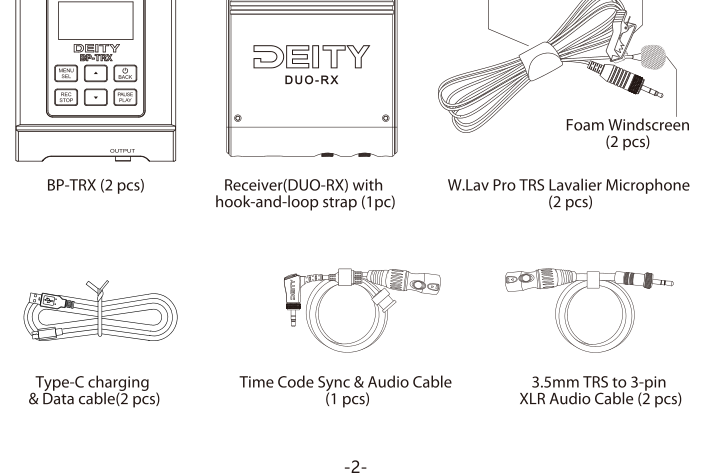

- BP-TRX transceiver (2 pcs)
- DUO-RX receiver with hook-and-loop strap (1 pc)
- W.Lav Pro TRS lavalier microphone (2 pcs)
- Cable Tie (2 pcs) and Microphone Tie Clip (2 pcs)
- Foam Windscreen (2 pcs)
- Type-C Charging & Data Cable (2 pcs)
- Time Code Sync & Audio Cable (1 pc)
- 3.5mm TRS to 3-pin XLR Audio Cable (2 pcs)

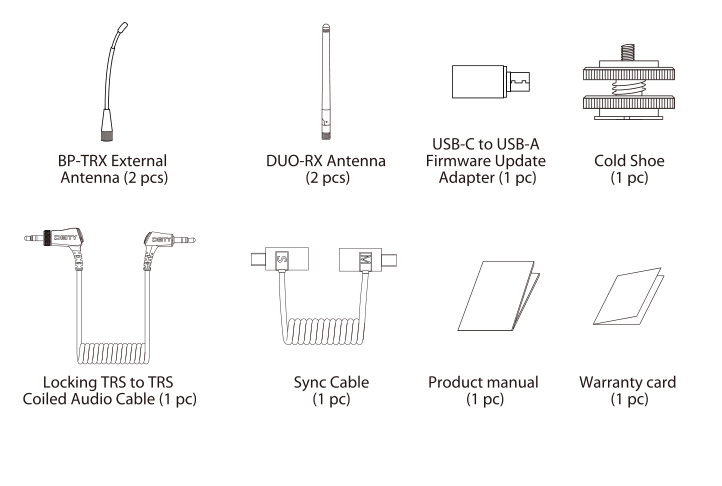

- BP-TRX External Antenna (2 pcs) and DUO-RX Antenna (2 pcs)
- USB-C to USB-A Firmware Update Adapter (1 pc)
- Cold Shoe (1 pc)
- Locking TRS to TRS Coiled Audio Cable (1 pc)
- Sync Cable (1 pc)
- Product manual (1 pc) and Warranty card (1 pc)
Intended Use
The Deity Connect Deluxe Kit is intended for professional and enthusiast audio capture within the operating conditions described in this documentation. Use a microphone or dry cloth to clean the units, keep all liquids away, and store the gear in a dry, clean, dust-free environment. Improper use means using the products in any way other than described here, which may damage the equipment.
Next Steps
- [Deity Connect] Kit Components & Setup - install the antennas, mics, and mounts, then pair the BP-TRX to the DUO-RX.
- [Deity Connect] Operation and Modes - choose a TRX mode, set the DUO-RX outputs, and record to microSD.
- [Deity Connect] Specifications - full spec tables for the BP-TRX, DUO-RX, and W.Lav Pro mic.
