Cutting your THEOS antennas to the correct length for your frequency band maximizes range and reliability. This guide explains the color coding and how to trim them.
Step-By-Step User Guide
US vs Global Version

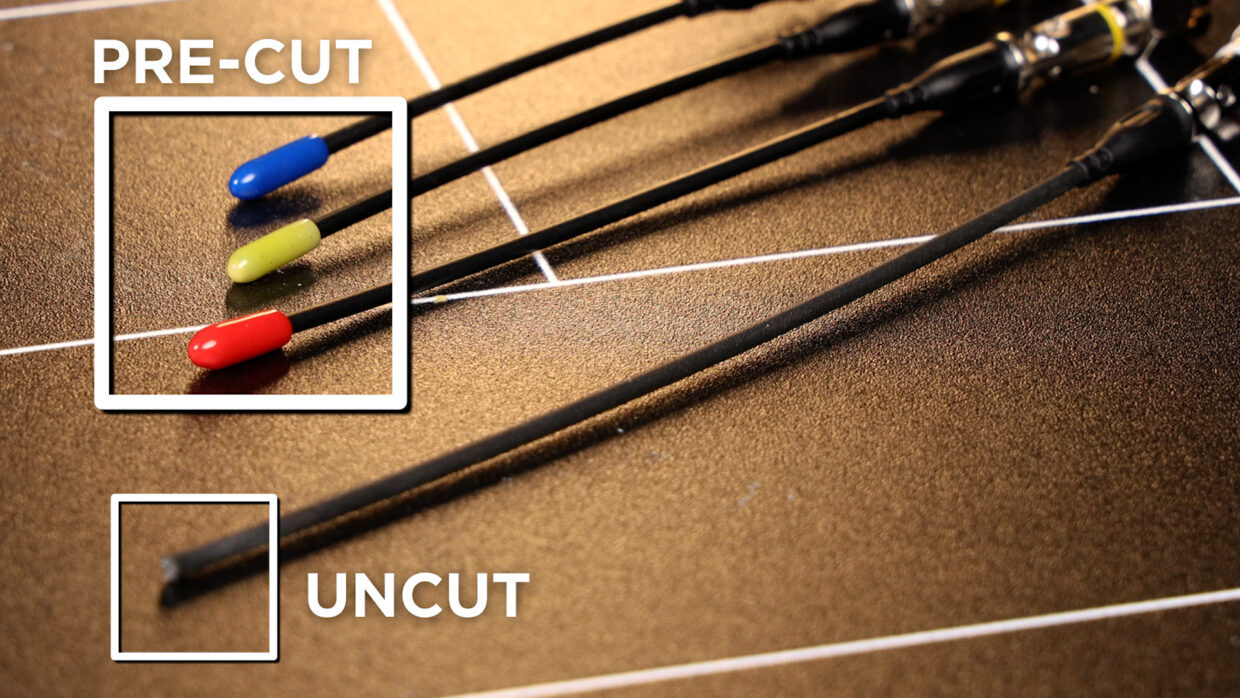

If you purchased a global Theos unit it will come with uncut antennas, while the US version will come with precut antennas.
If you purchase additional antennas, you will need to cut them according to the following guide.
Antenna Length
The length of the antenna dictates which frequencies it can send and receive.
Luckily getting antennas with a custom length is easy using Deity’s UHF-RA and UHF-TA.
Reference Chart

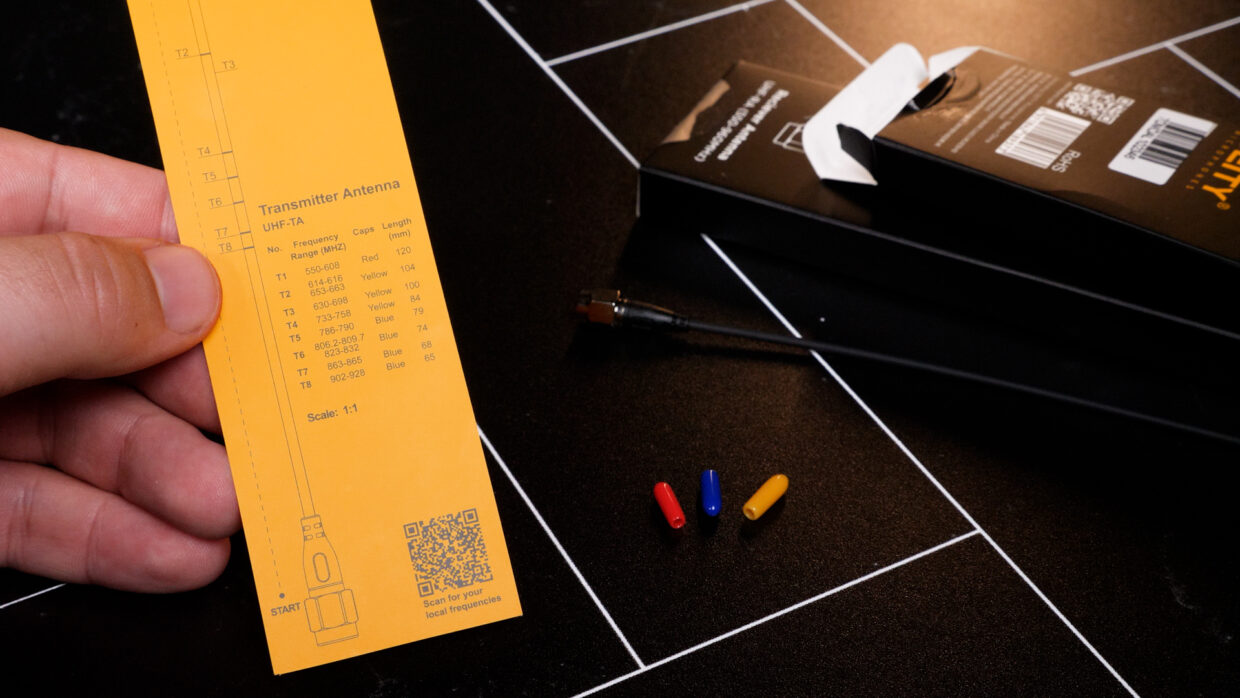

When you open the box you’ll see a double-sided length reference chart for the antennas, with UHF-RA on one side and UHF-TA on the other.

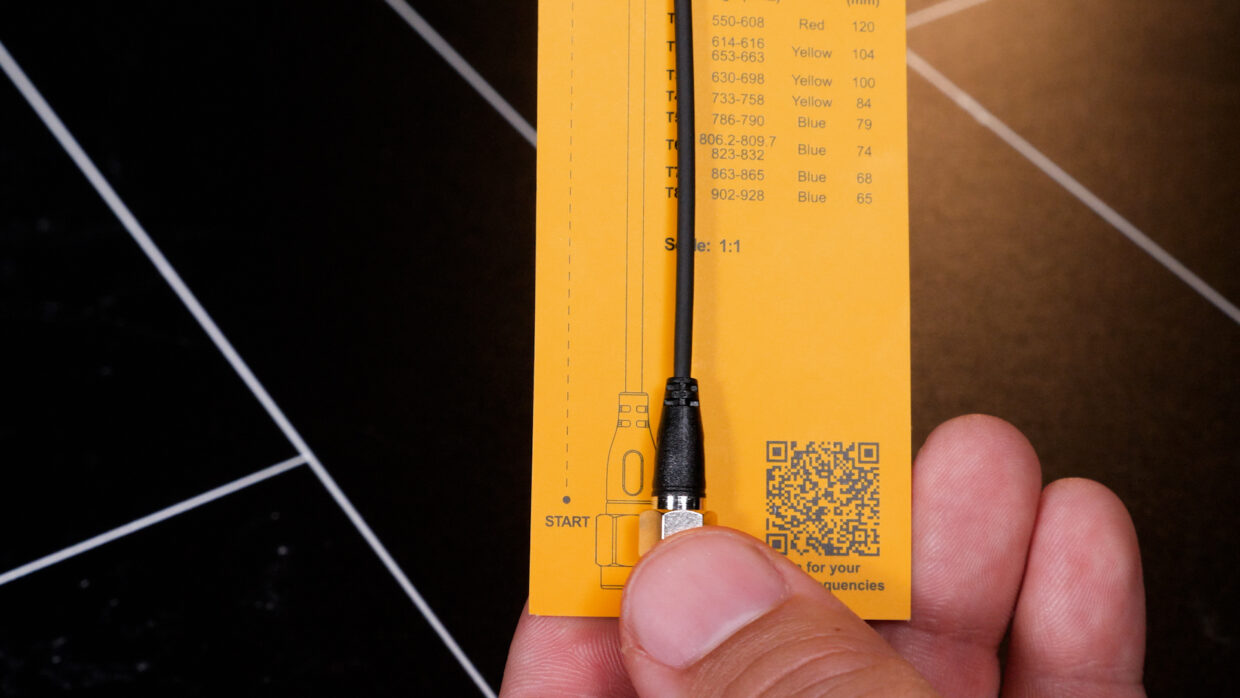

The charts are 1:1 so place the antenna onto its respective chart, aligning the connector with the line drawing.
The bottom of both should be congruent. Make note of which frequency band you need and find its corresponding cut mark on the chart.
Using the Chart
The charts are 1:1 so place the antenna onto its respective chart, aligning the connector with the line drawing.
The bottom of both should be congruent. Make note of which frequency band you need and find its corresponding cut mark on the chart.
Example

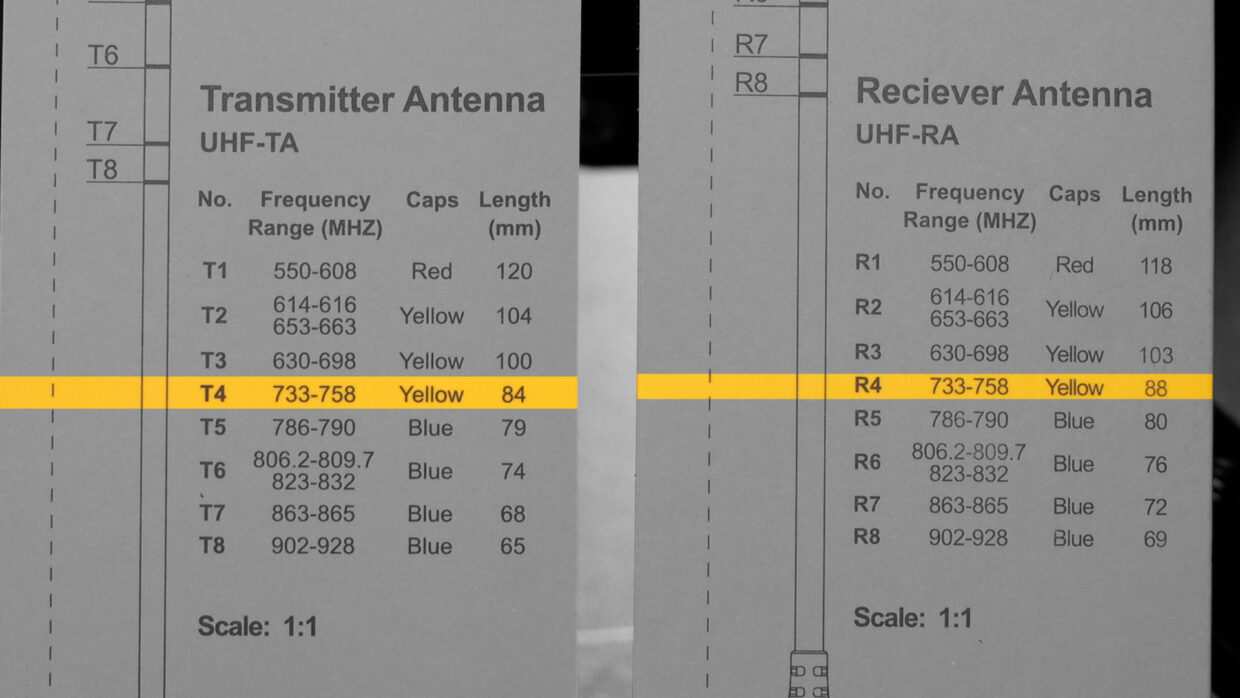

For example, if you’d like a transmitter antenna to work with 733MHz, according to the chart you will need to cut the antenna at T4.
The receiver equivalent to cut will be R4.
Mark your cut

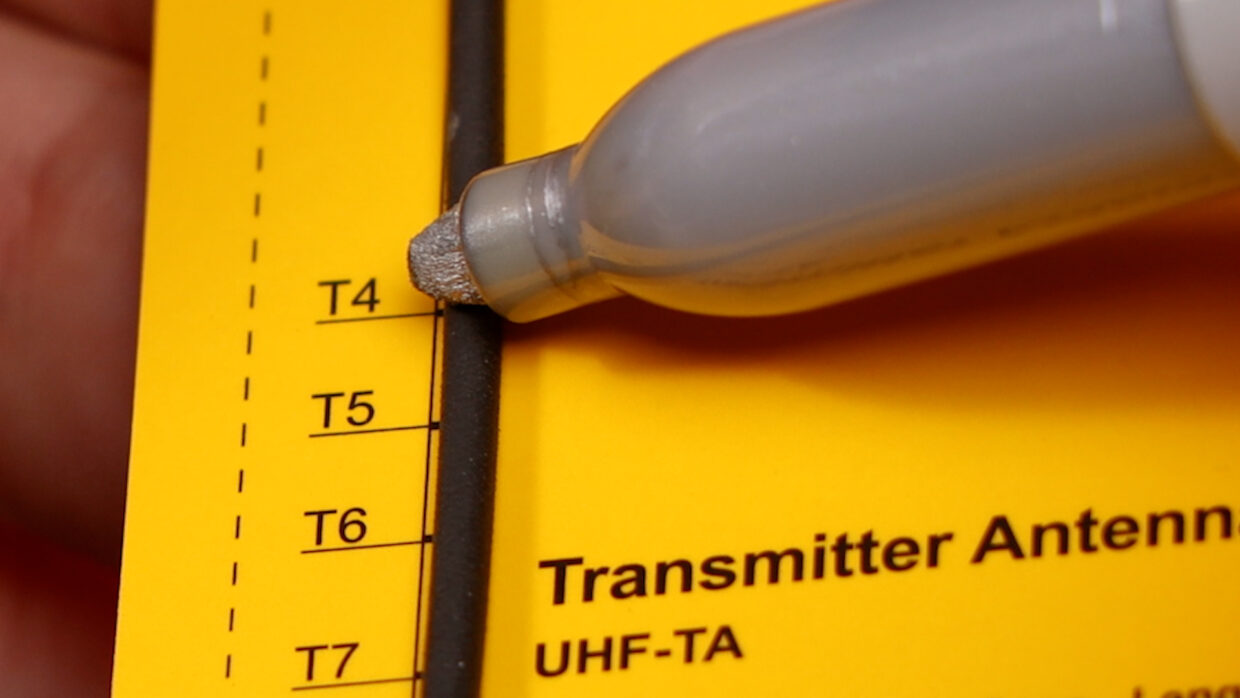

Use a silver Sharpie or other marker to denote where the cut should be made.
Proper cutting tool

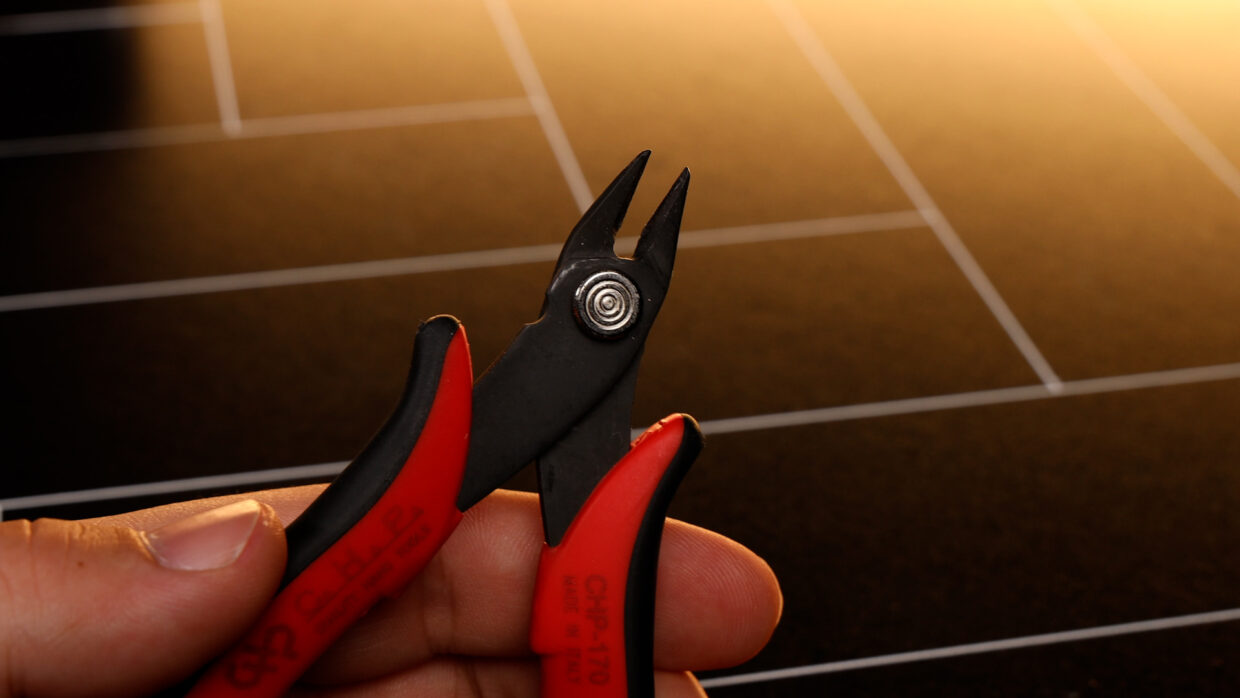

Note, this is heavy gauge antenna wire so household scissors will not cut it, you’ll need a proper set of wire cutters.
Antenna Caps

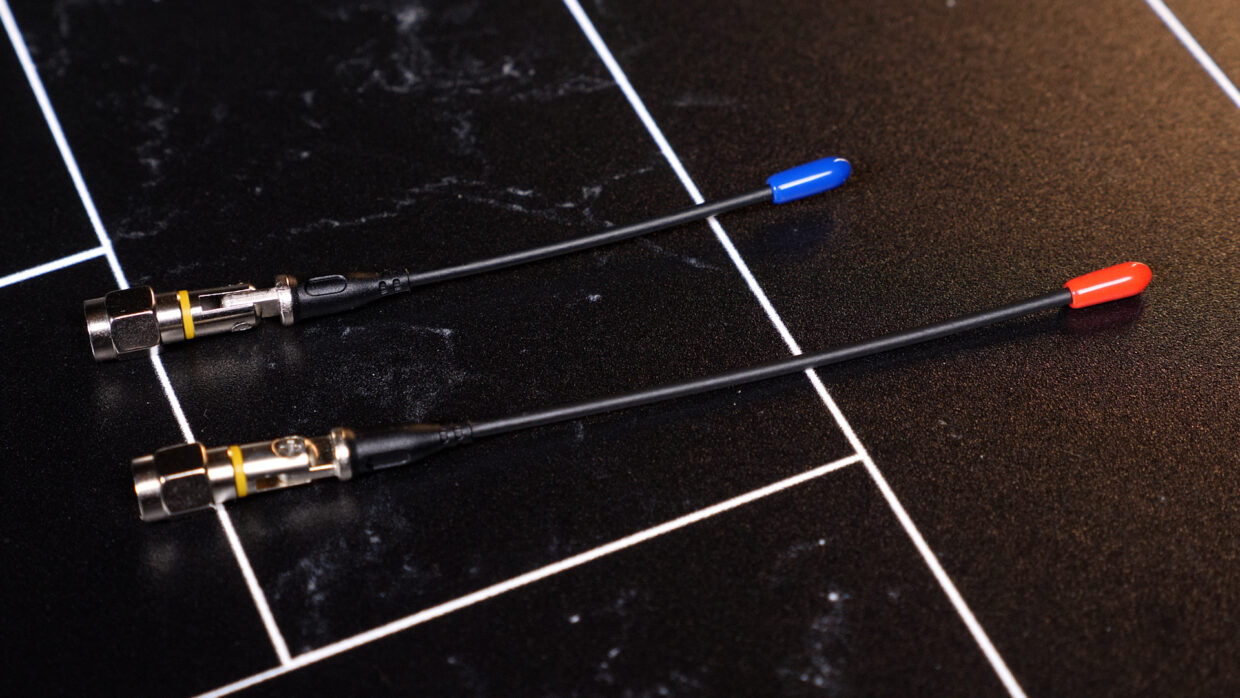

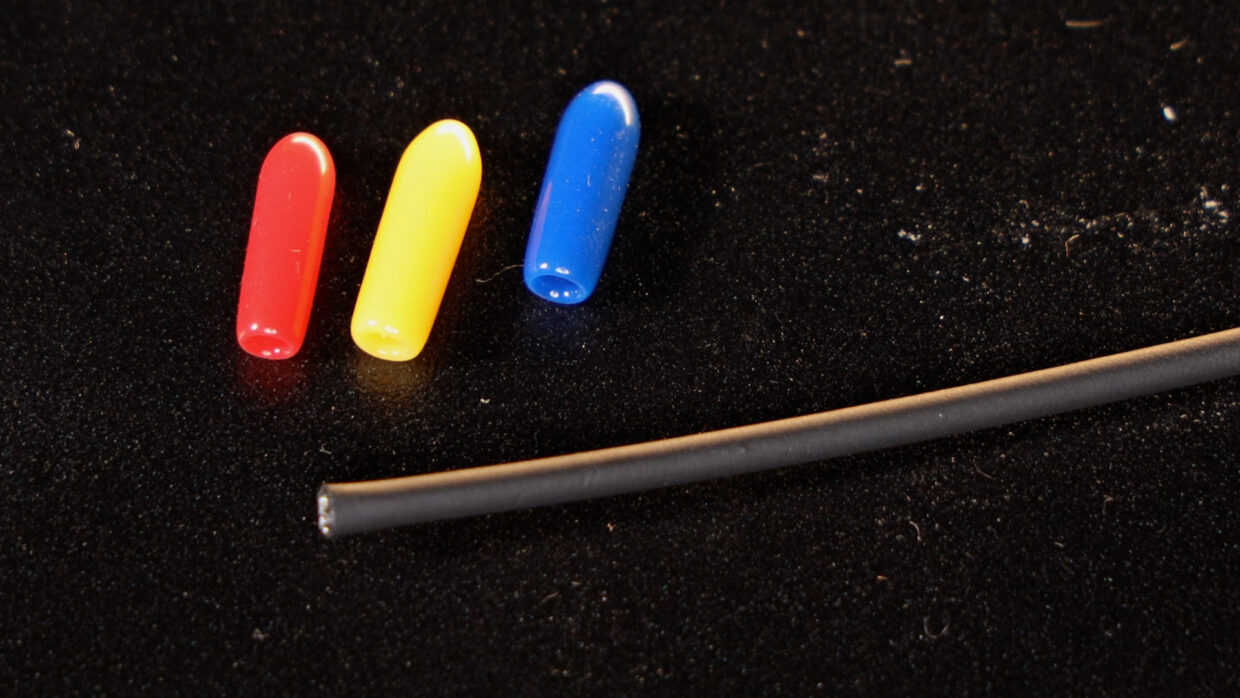

Once cut, use one of the included antenna caps to protect and label the cable. What color cap to use is listed on the chart.
For the T4 length selected, you need a yellow cap.
Find your Frequency

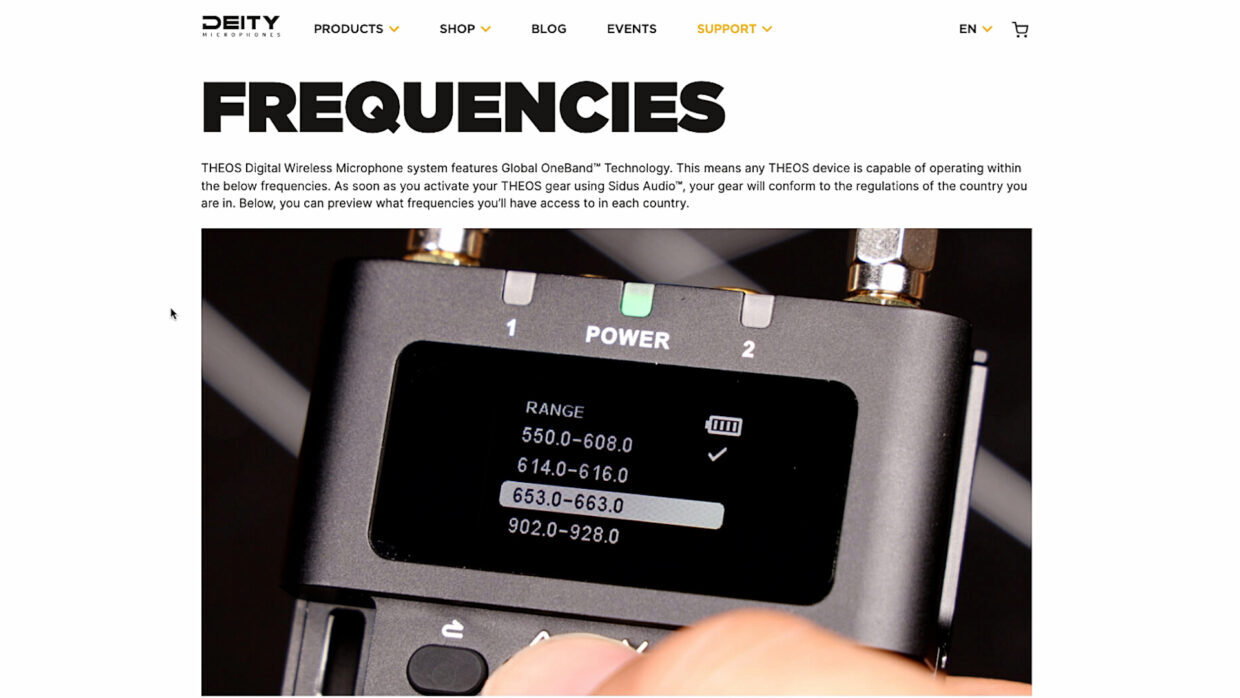

On the Deity website, we list the frequency ranges for over 60 countries.
Find your local range and follow the directions on the reference chart for its corresponding antenna cut length.
You’re Up and Running

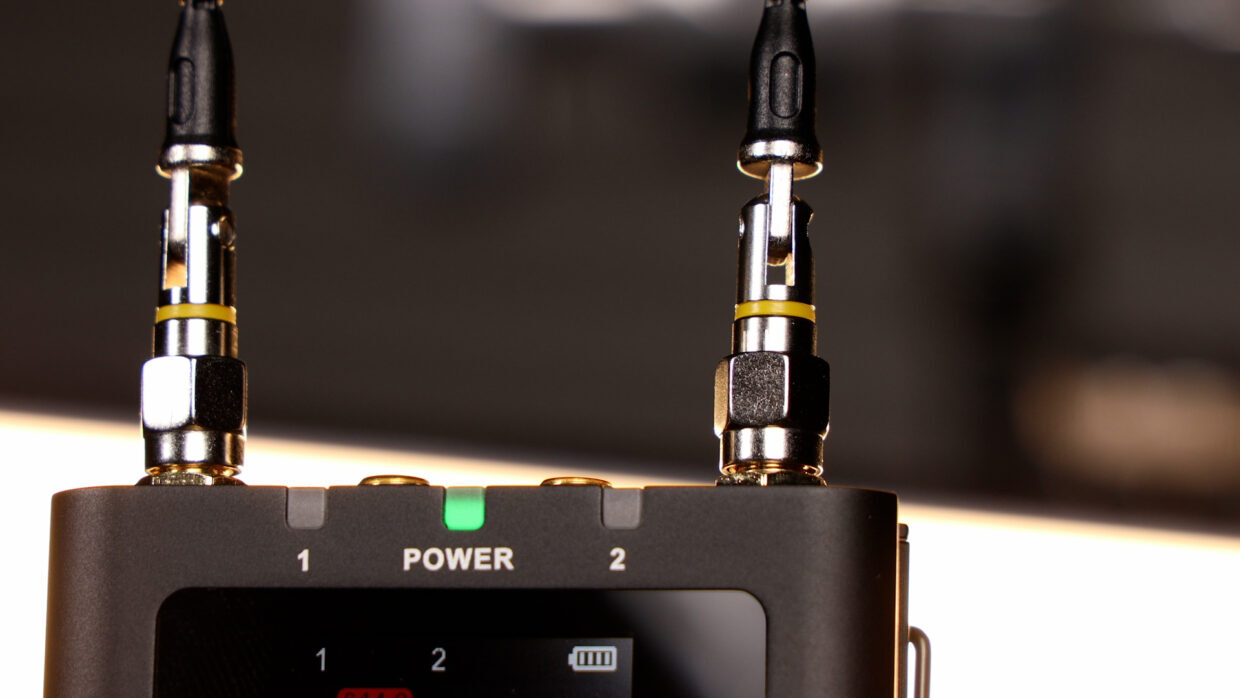

With that, your antennas are ready to be attached to your devices.
Be sure to come back and check out our other THEOS tutorials!
