The V-Link is the cleanest and simplest way to connect your 3.5mm video microphones to an XLR-based camera or audio recorder. This overview covers what makes it different and its full specifications.
Overview

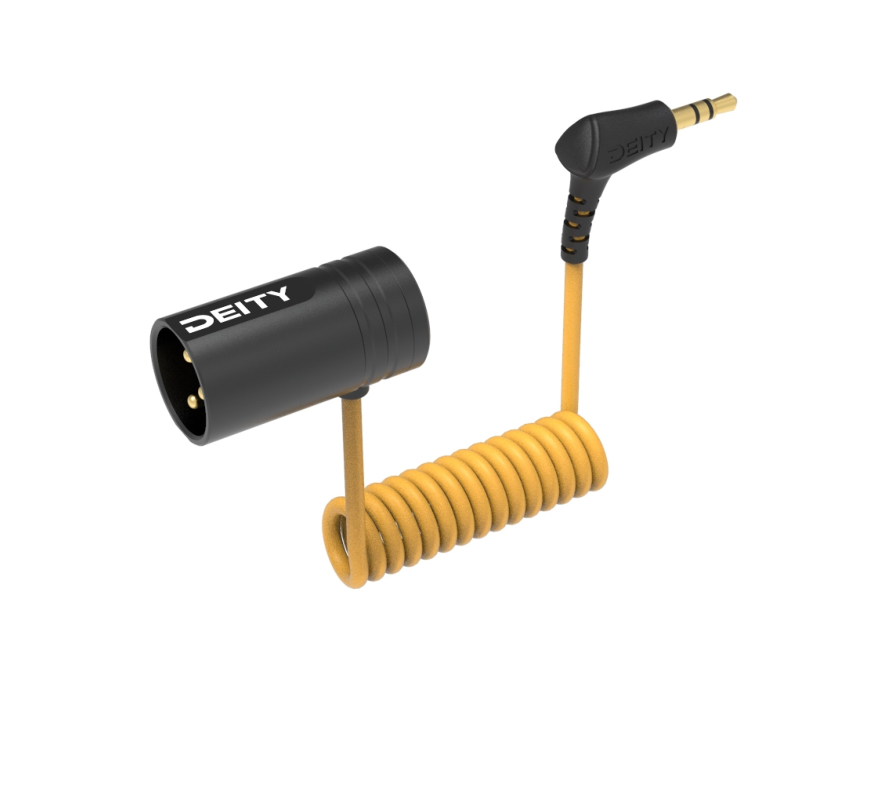

The low-profile right-angle XLR jack keeps cable runs clean and neat, and the built-in 12 inch coiled 3.5mm cable means you never have to worry about the two pieces separating like when using a traditional phantom power adapter. The V-Link adapts the 48V phantom power supplied by the XLR input it is plugged into and converts it to a 3V Plug-In Power signal, mimicking the traditional 3.5mm TRS jack that video microphones are designed to use.
What Makes V-Link Different
- Low-Profile and Right Angle: Reduces the bulk build-up around the XLR jack on a camera.
- Built-In Cable: Keeps the profile of your input plug that much smaller and reduces possible breaks in your signal chain.
- Zero Noise: The 48V conversion circuit introduces zero additional noise to your audio signal.
Specifications
| Product Name | V-Link |
| Input | Right-angle XLR (48V phantom power) |
| Output | 3.5mm TRS, 3V Plug-In Power |
| Cable | Built-in 12 inch coiled 3.5mm cable |
| Package Dimensions | 10 x 18 x 2 cm |
| Package Weight | 33 g |
| Carton | 120 pcs |
| Carton Size | 42.5 x 37.5 x 27 cm |
| Carton Weight | 11.4 pounds |
