Full technical specifications for the Deity S-Mic 3 shotgun condenser microphone, including its frequency response, super-cardioid polar pattern, and complete performance parameters. All data is measured by the Deity audio laboratory and is subject to the actual product.

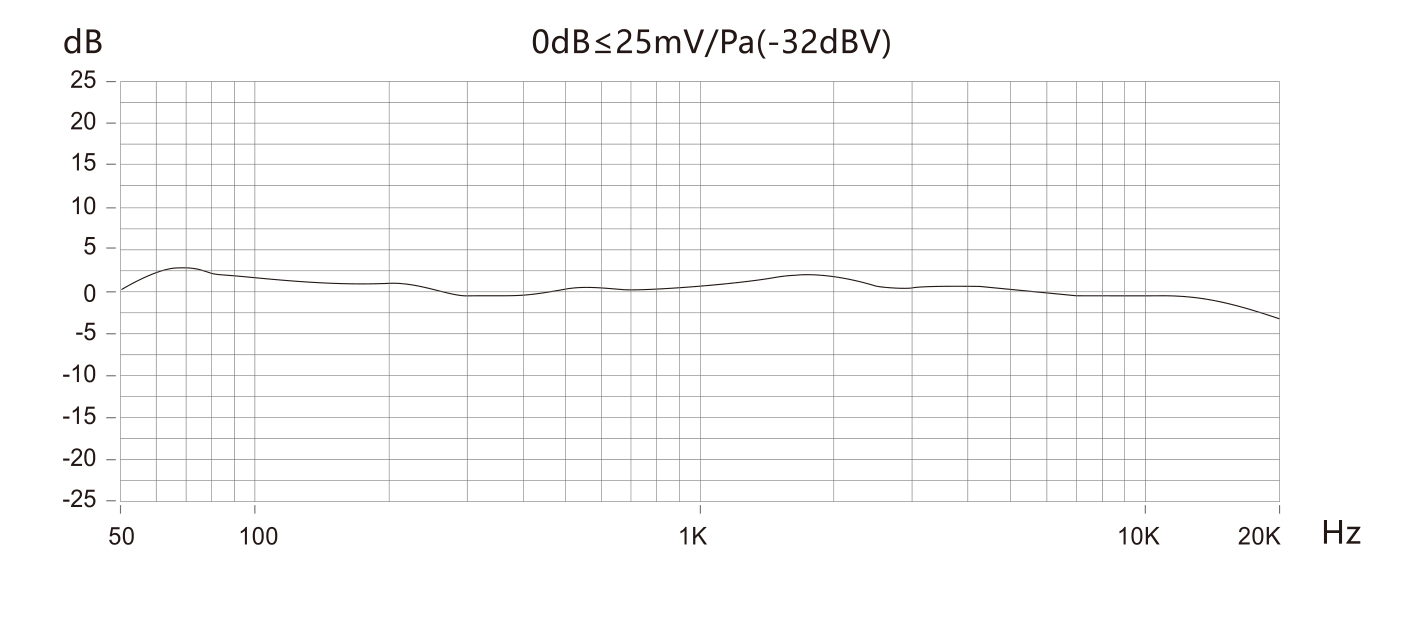

Frequency Response
The S-Mic 3 delivers a smooth, broadcast-friendly response across its 50 Hz to 20 kHz range (measured at 0dB ≤ 25mV/Pa, or -32dBV).

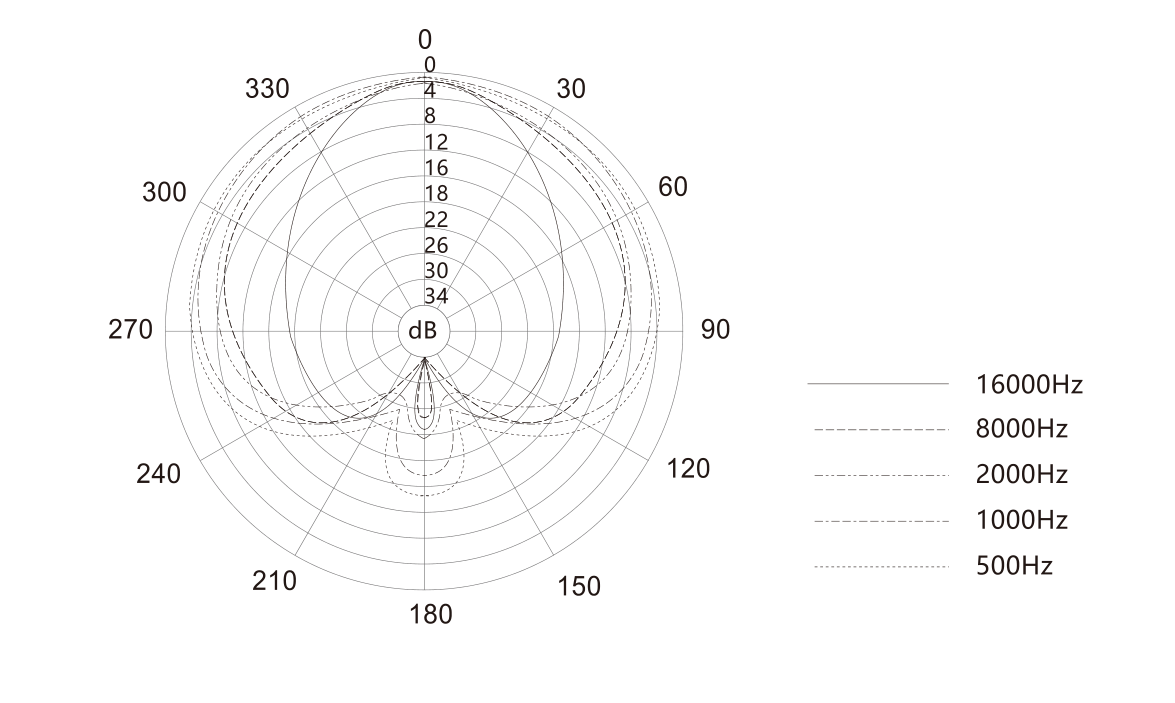

Polar Pattern
The S-Mic 3 uses a super-cardioid polar pattern for tight, on-axis directionality that rejects off-axis noise. The chart below plots the pattern at 500 Hz, 1000 Hz, 2000 Hz, 8000 Hz, and 16000 Hz.
Performance Parameters
| Polar Pattern | Super Cardioid |
| Maximum SPL | 130dB SPL (@1kHz, 1% THD into 1kΩ) |
| Frequency Range | 50 to 20kHz |
| THD | ≤0.5% |
| Nominal Impedance | 75Ω |
| Min. Terminating Impedance | approx 800Ω |
| Sensitivity | -32±2dB re 1V/Pa @1kHz |
| Equivalent Noise Level | 12dB (A-weighted), 24dB (CCIR 268-3) |
| Input Voltage | 24V or 48V phantom powering |
| Current Consumption | <4.5mA |
| Temperature Range | -20°C to +70°C |
| Dimensions | φ19 x 250mm |
| Output | 3-Pin XLR |
| Weight | about 80g |
The above data are all measured by the Deity audio laboratory and are subject to the actual data.
